Phantom V2012

The Phantom v2012 is the “powerhouse” in the Phantom UHS-12 series. With data throughput of 20 Gpx per second and high light sensitivity.

Overview

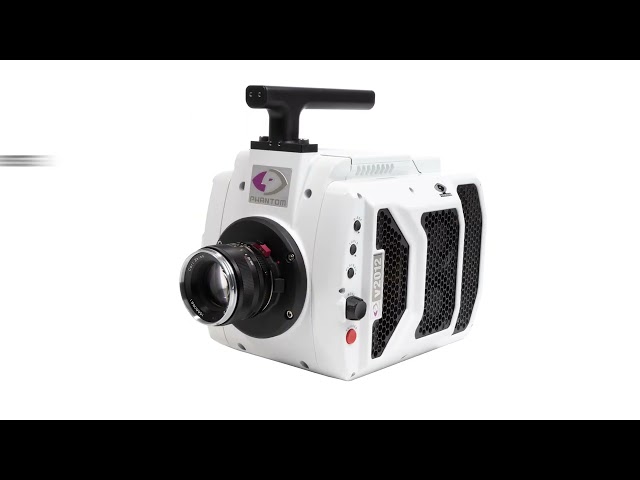

Introducing the Phantom v2012 a 1 Megapixel Ultra High Speed Camera.


The Phantom v2012 is the powerhouse of the Phantom UHS-12 series, designed to deliver exceptional performance and ease of use. With a blazing data throughput of 20 Gpx per second and impressive light sensitivity, this camera is perfect for lightning-fast testing and seamless data management with CineMag IV and V compatibility.


Capture Stunning Shots at Unprecedented Speeds: Experience the thrill of 22,500 frames per second at 1280 x 800 resolution, ensuring every detail is captured with precision. The Phantom v2012 pushes the boundaries further with its remarkable throughput, reaching an astounding 1 Million fps at 384 x 16 resolution and a minimum of 290ns with the FAST* option.


Adaptable Lens Mounts for Maximum Flexibility: Say goodbye to downtime and hello to enhanced workflow possibilities! The v2012 features interchangeable lens mounts, including Nikon, C, and Canon EF (with electronic control). Switching between different lenses becomes a breeze, allowing you to select the perfect lens for any situation.


Seamless Connectivity and Data Management: We understand the importance of a smooth workflow, which is why the v2012 offers multiple connections and supports various data formats. Time code, FSYNC, GPS, range data, and trigger connections are all included, ensuring you have all the tools you need at your fingertips. Additionally, the camera is equipped with on-camera controls, making it incredibly convenient for field use.


Superior Light Sensitivity and Depth: The v2012 boasts a 28-micron pixel size, allowing it to capture images with exceptional light sensitivity. With a 12-bit depth, you can expect stunning color accuracy and rich detail in every frame.


Experience the v2012 Advantage: With the Phantom v2012, you have the power to capture breathtaking moments in incredible detail. Take advantage of its immense throughput, adaptable lens mounts, seamless connectivity, and superior image quality. Plus, benefit from the convenience of on-camera controls and an internal mechanical shutter for black references.


Upgrade to the Phantom v2012 and unleash your creativity with unrivaled speed and precision!


Highlights


  • 22,600 fps at full 1280 x  800 resolution

  • 1 Milion fps with FAST option at reduced resolutions.

  • High light sensitivity with 28 micron pixel size

  • 12-bit depth for rich color accuracy

  • CineMag IV for non-volatile storage (1 TB, 2 TB)

  • Full Phantom Features and connectivity

  • Programmable I/O – Assign and define camera signals

  • On-camera controls for easy field use

  • Internal mechanical shutter for black references

  • 72 GB, 144 GB, 288 GB high-speed internal RAM

  • Programmable trigger options and synchronization capabilities

  • Multiple connectivity options including Gb Ethernet and 10 Gb Ethernet


FPS and Resolution in Standard Mode

Resolution 1280 x 800 1280 x 720 1024 x 512 640 x 480 256 x 256 256 x 128 128 x 64* 128 x 32*
FPS 22.600 25.100 41.800 62.500 188.500 347.800 727.200 1.000.000
*FAST Option
