Phantom T1340

The Phantom T1340 is a highly advanced camera with custom features that make it ideal for motion analysis applications. Capable of recording with 3.270fps at 2048 x 1952 it is a compact and powerful four megapixel imaging tool.

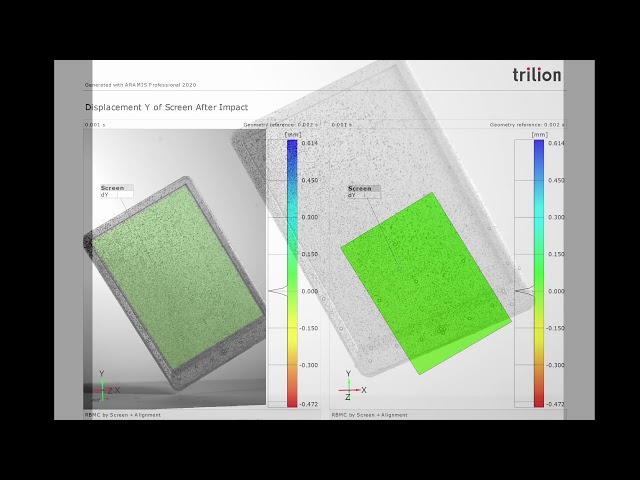

The Phantom T1340 represents the next step in high-speed and high-resolution imaging. It is part of a new generation of cameras that offer greater throughput, premium features, and improved performance in a small and compact housing. One of its standout features is a custom 4 Mpx sensor that can operate with 13 Gpx/second image throughput. This makes it ideal for motion analysis applications that require precision data, such as high-speed digital imaging correlation (DIC), particle image velocimetry (PIV), and stress and strain analysis.

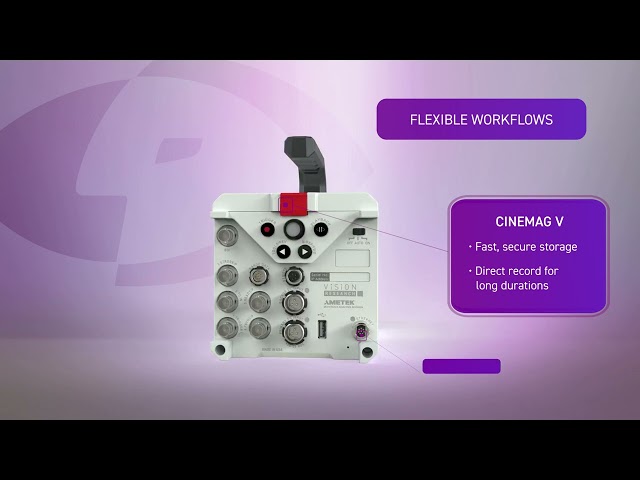

The Phantom T1340 also boasts several advanced features that enable a variety of applications. For example, it has a quiet mode that eliminates vibration, making it perfect for microscopy and 3D measurement techniques. It can also operate remotely and standalone using the on-camera controls, video monitor, and CineMag, which makes it suitable for outdoor applications. Additionally, the CineMag supports direct recording for long duration events.

Another key feature of the Phantom T1340 is its interchangeable lens mounts. It can be used with a range of high-quality and specialized optics without limitation, thanks to its Nikon, PL, C, M42, and Canon EF with Electronic control mounts. This allows the camera mount to be customized for specific tests as needed.


  • 3.270 fps at full 2048 x 1952 resolution

  • 13 Gpx/second

  • 36GB, 72GB, 144GB high-speed internal RAM

  • Binning Mode – frame rate boost at 1024 x 976 and below

  • 13.5 µm pixel

  • 12-bit depth

  • CineMag V Compatibility

  • SDI and HDMI video outputs

  • Programmable I/O – Assign and define camera signals

  • 10Gb Ethernet Option

FPS and Resolution in Standard Mode

Resolution 2048 x 1952 2048 x 1440 1920 x 1080 1024 x 976 640 x 480 640 x 8
FPS 3.270 4.390 6.160 9.900 18.600 113.514
